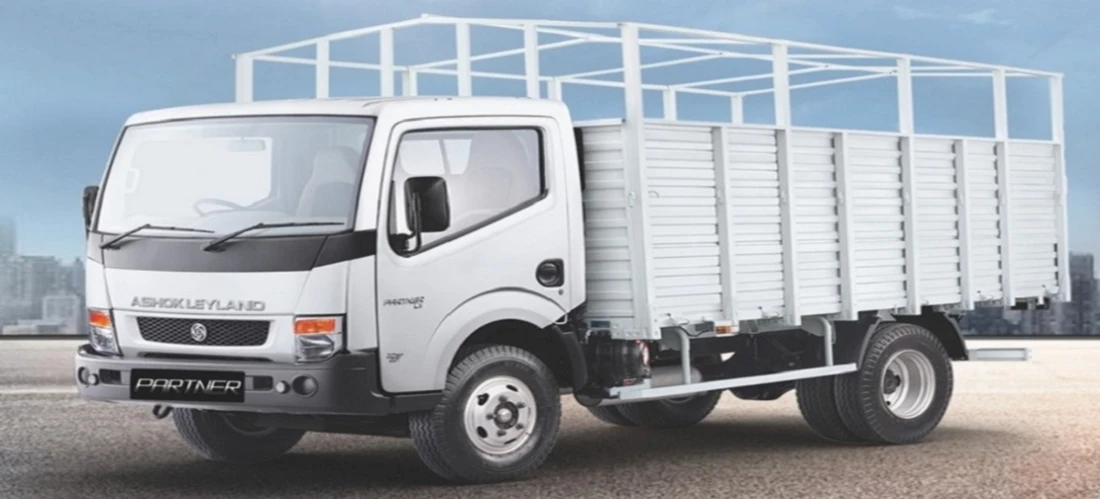

Ashok Leyland‘s ‘Partner’ series is available in both 4 tyre and 6 Tyre with a modern cabin, impressive built quality, fuel-efficient engine and with best in class service intervals with warranty of 3 Years or 3 Lakh Km,the vehicle delivers best-in-class user experience, coupled with exceptional efficiency.
A Modern Freight Carrier
The tilt-able cabin, low loading platform height and runner mounted load body enables service accessibility, customization and a wide choice of load body options. The turning radius and heavy-duty axles in the Partner are augmented for handling tough conditions.
Enhanced Driver Comfort and Safety
The Partner features a braking system, along with vacuum assist and Load Conscious Regulating Valve (LCRV) for greater safety. The parabolic front suspension and semi-elliptical rear suspension, along with double acting shock absorbers on both the axles, make the ride comfortable for the driver, irrespective of the payload or terrains.
Features
Zyaada TECHNOLOGY
- ADVANCED Selective Catalytic Reduction (SCR) Technology - Better Reduction of NOx, CO, HC & PM
- GREENER AND CLEANER TECHNOLOGY
Zyaada POWER & Zyaada MILEAGE
- Get MORE Mileage with Superior and Proven ZD30 Engine
- Highly efficient Bosch 2.2 CRi Common Rail System with Advanced Direct Injection
- BEST IN CLASS POWER AND TORQUE
- POWER: 140 HP | TORQUE: 360 Nm
- 10% MORE MILEAGE
Zyaada DURABLE AGGREGATES
- Advanced Gear Box with Dual Synchro Cones
- Bigger Clutch
- First in Class Cable Shift Gear Mechanism
- First in Class Parabolic Suspension
- BEST ENSURING RELIABLE PERFORMANCE
Zyaada PAYLOAD & LOADING SPACE
- Bigger load body in length and side deck height - More usable space
- Lesser Loading Platform height for easy loading and unloading
- UPTO PAYLOAD: 4885 kg
Zyaada COMFORT
- Modern Euro Cabin design which meets International Standards
- Narrow Cabin Width (1.9m) for better maneuverability
- Front Tilt Cabin for ease of Serviceability
- FACTORY-FITTED AC AND POWER STEERING
Zyaada BHAROSA
- Engine & Transmission warranty of 3 years/ 3 Lakh km which ensures complete Peace of Mind
- High Reliability and Proven Performance
- 3 YEARS OR 3 LAKH km
| Partner 6 - Tyre | ||||||
| 11 ft LB | 14 ft LB | |||||
| Weight (kg) | ||||||
| Gross Vehicle Weight (kg) | 7490 | 7490 | ||||
| Rated Payload (FSD) (kg) | 4885 | 4775 | ||||
| Load Body Dimensions (mm) | ||||||
| Length | 3415 | 4230 | ||||
| Width (HSD) | 2060 | |||||
| Height | FSD: 460 - HSD: 1840 | |||||
| Powertrain | ||||||
| Engine Type | ZD30 Diesel Engine with DDTi (Double Overhead Camshaft, Common Rail, Direct Injection, Turbo Intercooled) | |||||
| Displacement | 2953 cc | |||||
| Max Power HP (@rpm) | 140@2750 | |||||
| Max Torque Nm (@rpm) | 360 Nm @ 1350-2750 rpm | |||||
| Clutch | 310 mm Diameter, Diaphragm, Push type, Single dry plate , Hydraulic actuated | |||||
| Transmission | Fully syncronised 5 speed gearbox Manual – Kinetic | |||||
| Fuel Tank Capacity | 90 Litres | |||||
| Emission Standard | BS VI | |||||
| Suspension & Tyres | ||||||
| Front Suspension | Parabolic, overslung suspension with Double acting Shock Absorbers | |||||
| No. of Leaf Springs (Front) | Front 3 | |||||
| Rear Suspension | Semi elliptic (main), overslung suspension with Double acting Shock Absorbers | |||||
| No. of Leaf Springs (Rear) | 6 Main + 4 Helper | |||||
| No. of Tyres | Front 2, Rear 2, Spare 1 | |||||
| Tyre Size | 7.50 X 16, 16PR | |||||
| Loading Pla¥orm Height (mm) | 1042 | 1035 | ||||
| Turning Circle Radius (TCR) (m) | 5.7 | 6.75 | ||||
| Min. Ground Clearance | 221 | |||||
| Overall Dimensions (mm) | ||||||
| Wheel Base | 2820 | 3320 | ||||
| Overall Length | 5170 | 5990 | ||||
| Overall Height | FSD : 2240 HSD : 2832 |
|||||
| Electricals | ||||||
| Battery | 1 x 75 AH | |||||
| Alternator | 70A (LS) 90A (LX) | |||||
| Steering | ||||||
| Steering System | Power | |||||
| Brakes | ||||||
| Service Brake | Vacuum-assisted Hydraulic Brake | |||||
| Exhaust Brakes | Yes | Yes | ||||
| Parking Brake | Transmission mounted, Cable Operated | |||||
| Performance | ||||||
| Gradeability | 25% | |||||
| Features | Partner 6 - Tyre | |||||
|---|---|---|---|---|---|---|
| LS | LX | |||||
| Comfort & Convenience | Tiltable Power Steering | |||||
| Reclining & Sliding Driver Seats | ||||||
| Digital Clock (on instrument cluster) | ||||||
| Mobile Charging Point (12V) | ||||||
| Lockable Glove Box | ||||||
| Bottle Holder | ||||||
| Lockable Battery Box | ||||||
| AC with Heater Unit (HVAC) | ||||||
| Windshield Defogger | ||||||
| Interiors | Dual Tone Dash Board | |||||
| Seat Material - Dual Tone | Vinyl | Fabric | ||||
| Moulded Roof & Door Trims | ||||||
| Safety | ELR Seat Belt (Driver and Co-Driver) | |||||
| Fog Lamp Provision | ||||||
| Vacuum-assisted Brakes with LCRV | ||||||
| Technology | Tiltable Cabin | |||||
| Cable Type Gear Shift | ||||||
| Low Vacuum in Brake Booster Indicator | ||||||
| Speed Limiting on ECU | ||||||
| Provision for Power Take-off(Mechanical) | ||||||
